| Width | 190cm, 230 cm, 280 cm etc |
| Speed | 190cm–1000rpm |
| Dobby | Cam shedding or electronic dobby |
| Weft selector | Electronic weft selector 2, 4, 6 colors |
| Weft feeder | 2 pcs |
| Heald frame | 8~16 frames |
| Warp beam | 1.5 sets |
| Cloth roller | 1.5 sets |
| Heald wire | 5000 pcs |
| Drop pin | 5000 pcs |
The Chinese reconditioned airjet looms may be compared at par with second hand European and Japanese airjet looms. Used looms are reassembled after through and strict inspection and refurbished to perform like new machines. the productive lifetime of the machine is extended and the customer may enjoy long and maintenance free use of the looms.

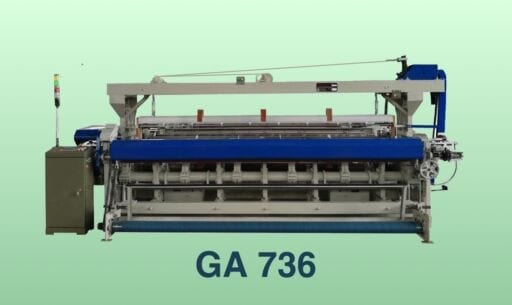

New weft insertion, new frame structure, and high-speed CPU ensure the maximum running speed of 1200RPM. New weft insertion and energy saving design of main & auxiliary nozzle realize less air consumption. Using 3D design and computer analysis to optimize the frame structure including the cross rail connections, and to realize light-weight design and optimum balance of the beating motion. These improvements ensure lower vibration and high stability during high-speed operation.
A wide range of standard configuration and a variety of optional parts have enabled the loom to weave fabrics that are mostly woven by rapier looms, including wide home furnishings fabric, tyre cord fabric, fiberglass fabric, fabrics of different yarn types and counts, airbags, seersucker and folding edge fabrics.
Relatively lower machine, inhead type temple is both beneficial for the operation; The loom is also equipped with Internet communication technologies, multi-functional control panel with advanced high-speed CPU.
- High speed.
- Low Energy Consumption.
- Low Noise.
- Low vibration.
- Flexibility and wide applicability.
- Easy operation & Modern Electronics
